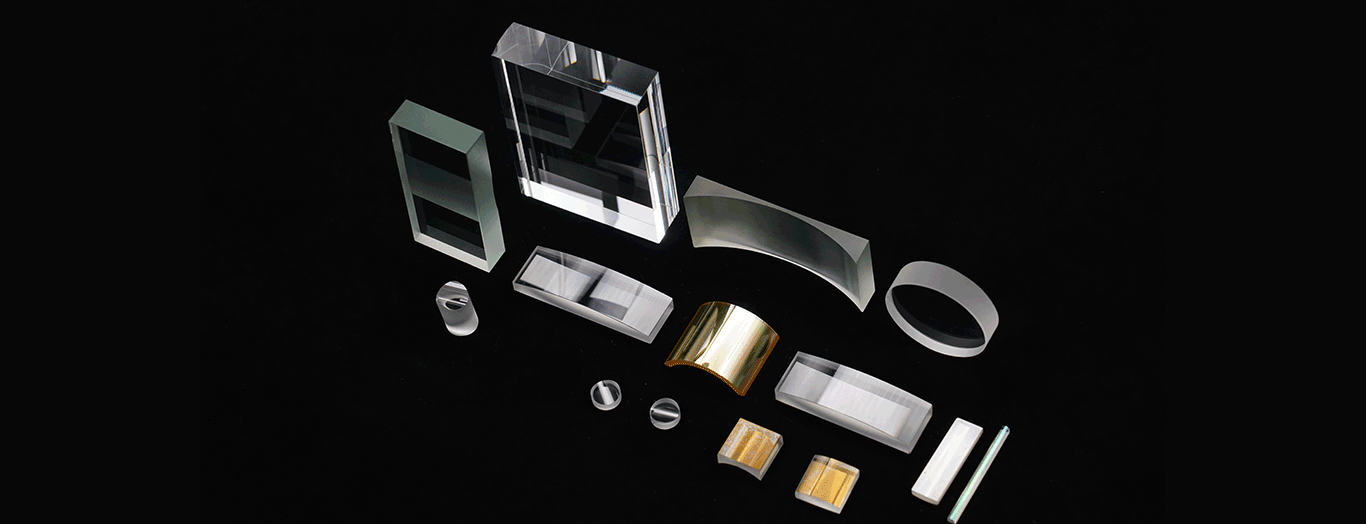

Cylindrical LensPrecision optical compoments
Cylindrical lenses can be used to focus light into a thin line in the applications of scanning, spectroscopy, laser diode, acousto-optic, optical processing, and others. Cylindrical lenses can also be used to expand the output of a laser diode into a symmetrical beam.
Alpha-Optics’ cylindrical lenses are designed to meet the stringent requirements of industry applications. The microlenses are manufactured to minute tolerances to ensure minimum wavefront error and polished to accurate surface finish to minimise scatter and unwanted diffraction.
Plano-convex Lens
Plano-concave Lens
Double convex Lens
Double concave Lens
Meniscus Lens
Specifications:
Material: BK7 A grade optical glass or UV grade Fused Silica
Design Wavelength: 632.8 nm
Design Index: n=1.45702 ± 0.00005
Surface Figure: x: λ/2; y: 2λ
Dimension Tolerance: +/-0.2mm
Paraxial Focal Length: +/-2%
Centration: 3 arc minutes
Clear Aperture: >85% of diametre
Surface Quality: 60-40 S/D
Bevel: 0.25mmx45deg
